Design

Thanks to their unique design, Masterflamme stoves have the unique ability to quickly generate heat and distribute it smoothly and evenly. Cold air is sucked into the tubes that form the combustion chamber. This causes immediate air heating and blowing back into the room. With this “hair dryer effect”, Masterflamme stoves can deliver a large amount of heat in a very short time and distribute it evenly into the heated room.

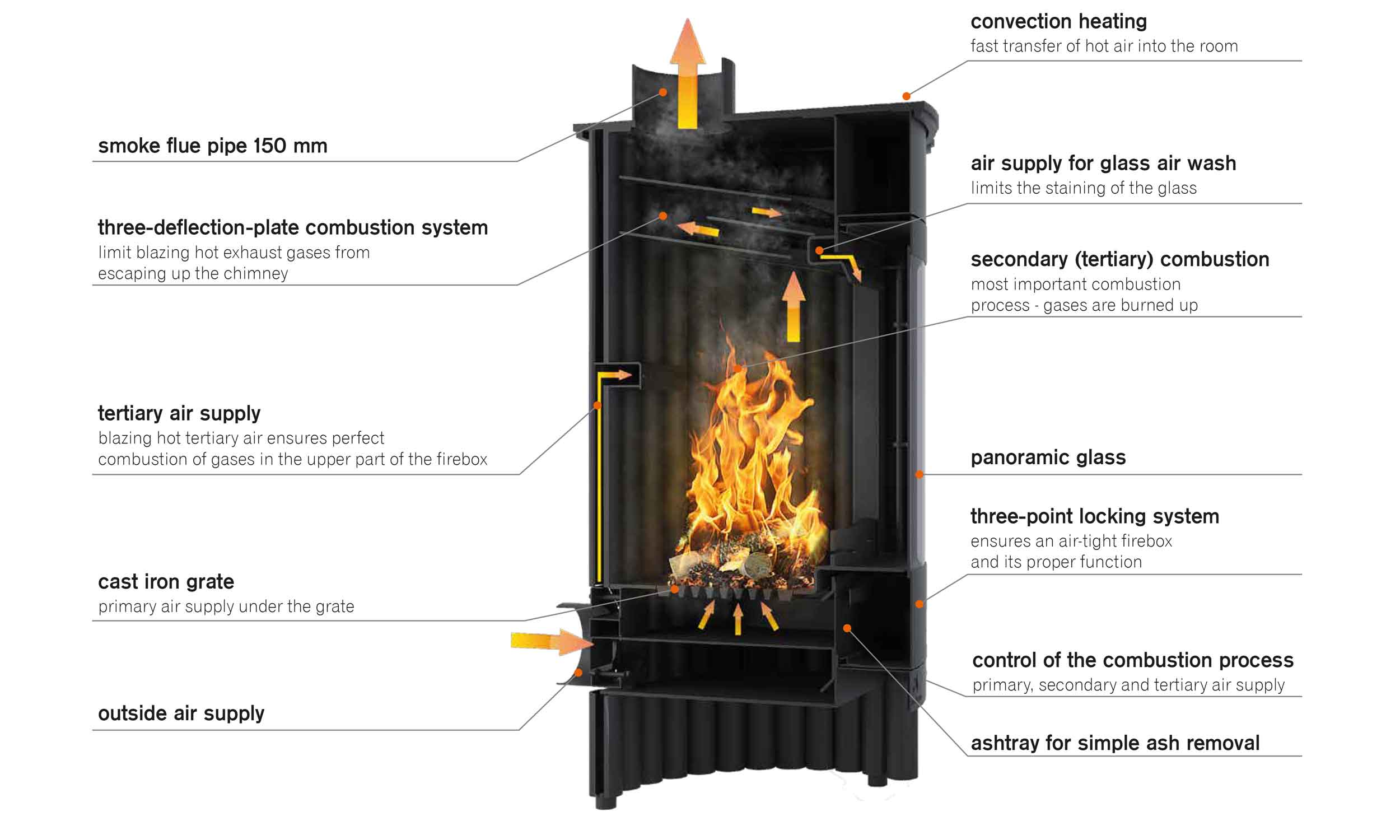

Masterflamme – 3D cut

3d-rez-masterflamme-en
logo_cv_poz_bar_s_och-transparent-en

Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.

Parameters

Piccolo IPiccolo IIMedie IMedie IIGrande IGrande II
Total power range3 – 11 kW8 – 16 kW13 – 21 kW
Stove efficiency79 %79 %78 %
Fuel consumption2 [kg/h]3,5 [kg/h]5 [kg/h]
Operating thrust12 Pa12 Pa12 Pa
Flue gas outlet150 mm150 mm150 mm
Length of logs42 cm46 cm52 cm
Weight [kg]128 118152142193183
Emission CO (při 13% O²)0,0910,0930,095
Average flue gas temperature278 °C299 °C320 °C
Heat capacity [m³]75 - 275200 - 400325 - 525
Warranty5 years5 years5 years
Meets standardsEN 13240, BlmSchV - Stufe 2, Ekodesign
